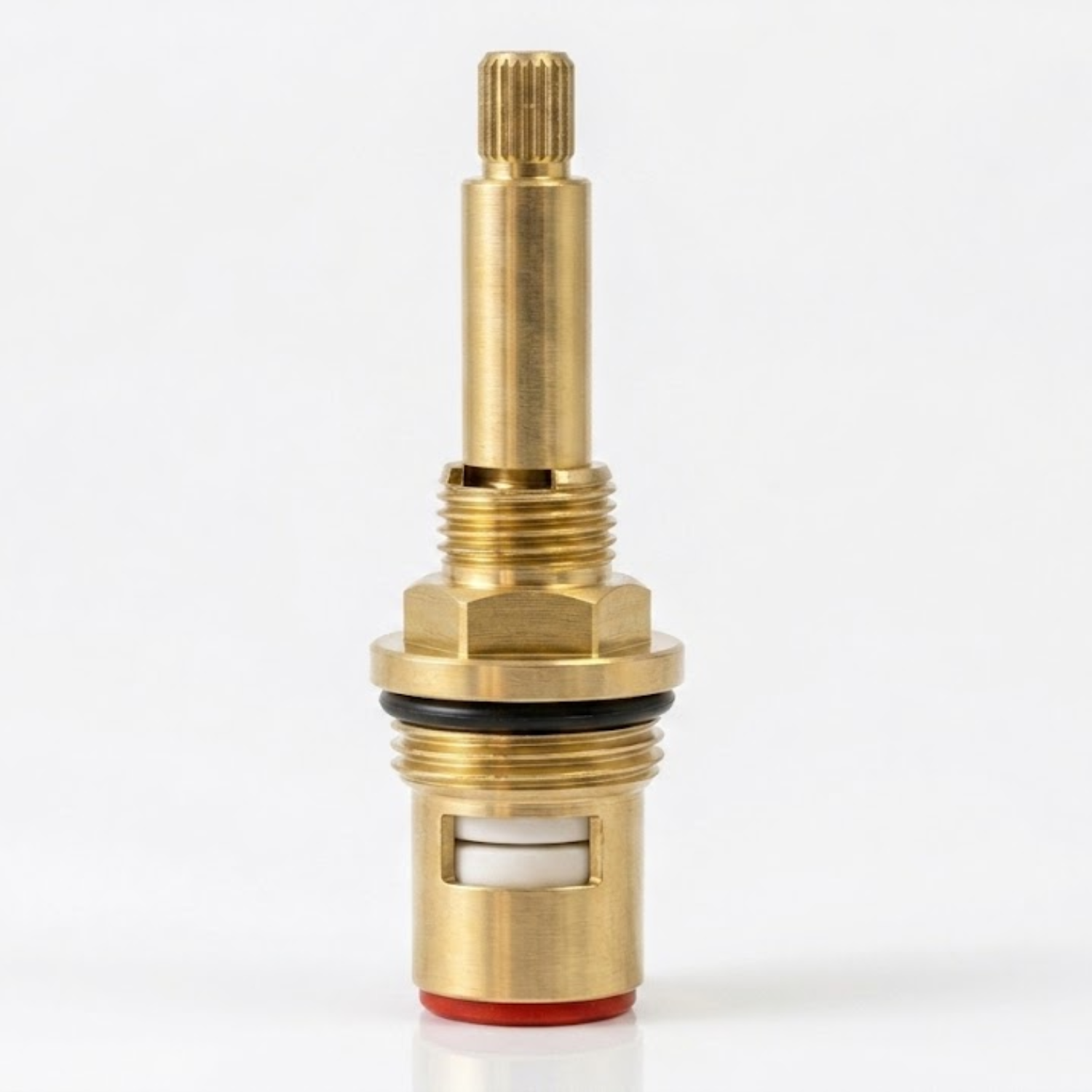

Hot Flow Control Valve for Camden Taps – 22.6mm Diameter x 70.7mm Height

Quickfind Code: 2038212 SKU: SPFCVH2
£14.97

Details & Dimensions

  • Hot Flow Control Valve — designed to suit Camden models for reliable temperature regulation.
  • Compatible with: BeBa_25960, 25961, 25962, 25964, 25965, 25966, 25967, 25969, 25970, 25971, 25972, and 25974.
  • Key dimensions: Total length 70.7 ± 0.2 mm; main body Ø22.6 mm; hex width 16.9 mm; outer Ø23.8 mm; spline Ø7.62 mm (20 teeth).
  • Additional specs: Spline shaft Ø6.6 mm × 9 mm long; front thread M14 × 1.25; rear thread M4 × 12.
  • Always check the spare part size to ensure it fits your product.
click
Hot Flow Control Valve for Camden Taps – 22.6mm Diameter x 70.7mm Height
£14.97

Product Description

All about me

Hot Flow control valve to Suit Camden.

Compatible with: BeBa_25960, BeBa_25961, BeBa_25962, BeBa_25964, BeBa_25965, BeBa_25966, BeBa_25967, BeBa_25969, BeBa_25970, BeBa_25971, BeBa_25972, BeBa_25974

Always check the spare part size to ensure it fits your product.

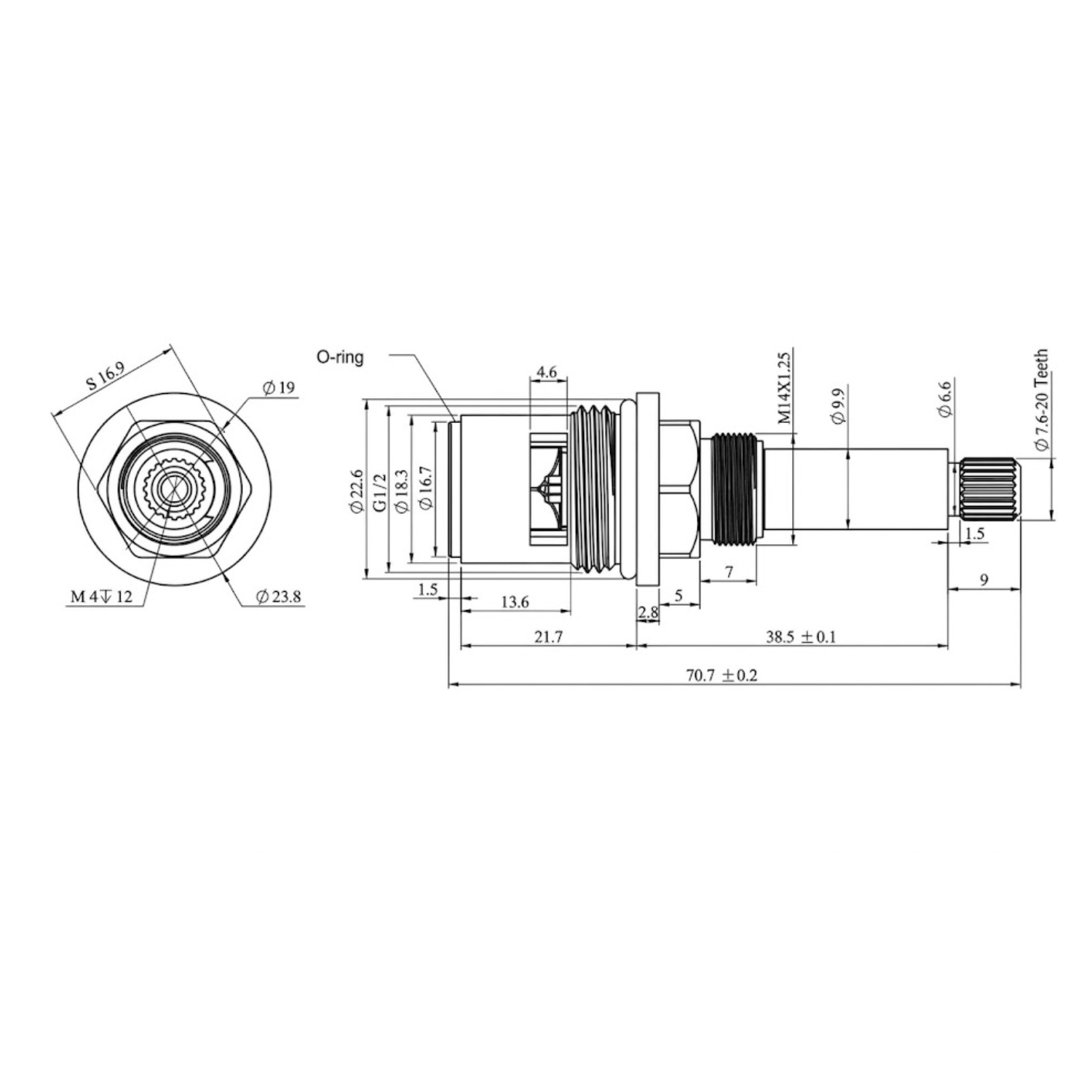

Need to know

  • Total length: 70.7 ± 0.2 mm
  • Main body diameter: Ø22.6 mm
  • Front hex width: S = 16.9 mm
  • Outer front diameter: Ø23.8 mm
  • Inner splined end diameter: Ø7.62 mm (20 teeth)
  • Spline shaft diameter: Ø6.6 mm
  • Spline shaft length: 9 mm
  • Threaded section (front): M14 × 1.25
  • Threaded section (rear): M4 × 12
